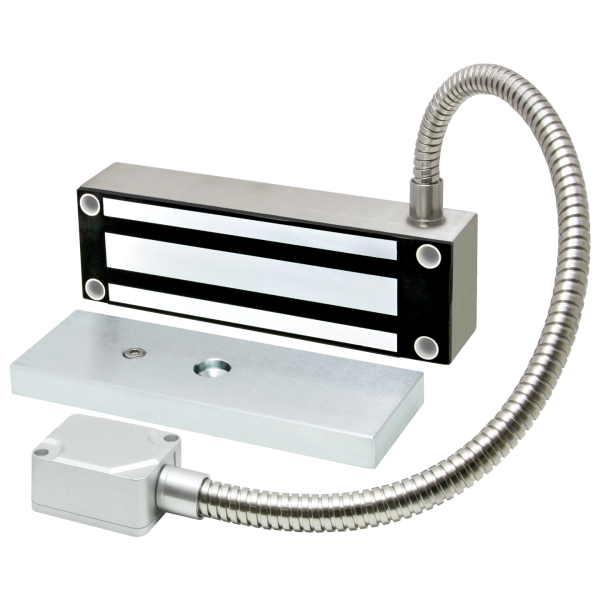

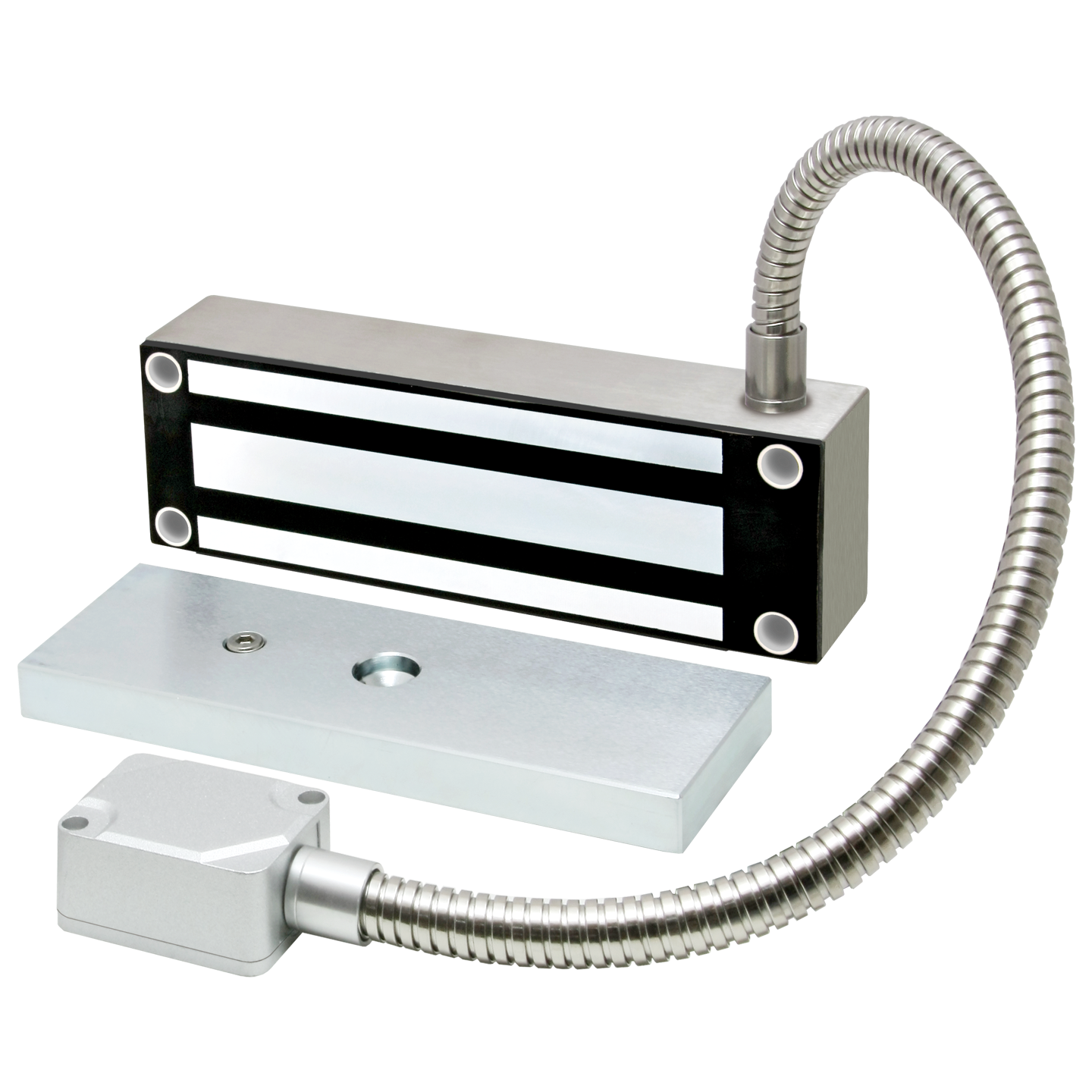

Seco-Larm 1,200-lb Electromagnetic Gate Lock with Door Cord
$38.61
$62.55
Seco-Larm 1,200-lb Electromagnetic Gate Lock with Door Cord The SECO-LARM Electromagnetic Gate Lock with Door Cord combines a strong and durable gate lock with an armored door cord for ease of installation and greater security. 1,200-lb (544kg) holding force, it is suitable for almost any gate installation and can be installed horizontally as well as vertically. 12/24 VDC For use with nearly all types of outdoor sliding and swinging electric gates Low current draw of 500mA@12VDC, 250mA@24VDC Can be mounted horizontally or vertically 18″ (457mm) Armored door cord with housing and security screws (security wrench included) IP65 Weatherproof Limited Lifetime Warranty *Warranty applies in the USA and Canada only. Contact SECO-LARM for details. Specifications: Operating voltage 12/24 VDC Holding force 1,200-lb (544kg) Current draw 500mA@12VDC, 250mA@24VDC IP Rating IP65 Connections 18″ (457mm) Armored door cord with housing Operating temperature 14°~131° F (-10°~55° C) Dimensions Maglock: 8″x2-1/2″x1-9/16″ (203x63x40 mm)Armature Plate: 7-1/4″x2-3/8″x5/8″ (185x61x16 mm) Weight 10-lb 5.6-oz (4.7kg) Downloads: Product Information Sheet (PI) Manual Mounting Diagram SKU: E-942FC-1K2AR Categories: Access Control, Maglocks
