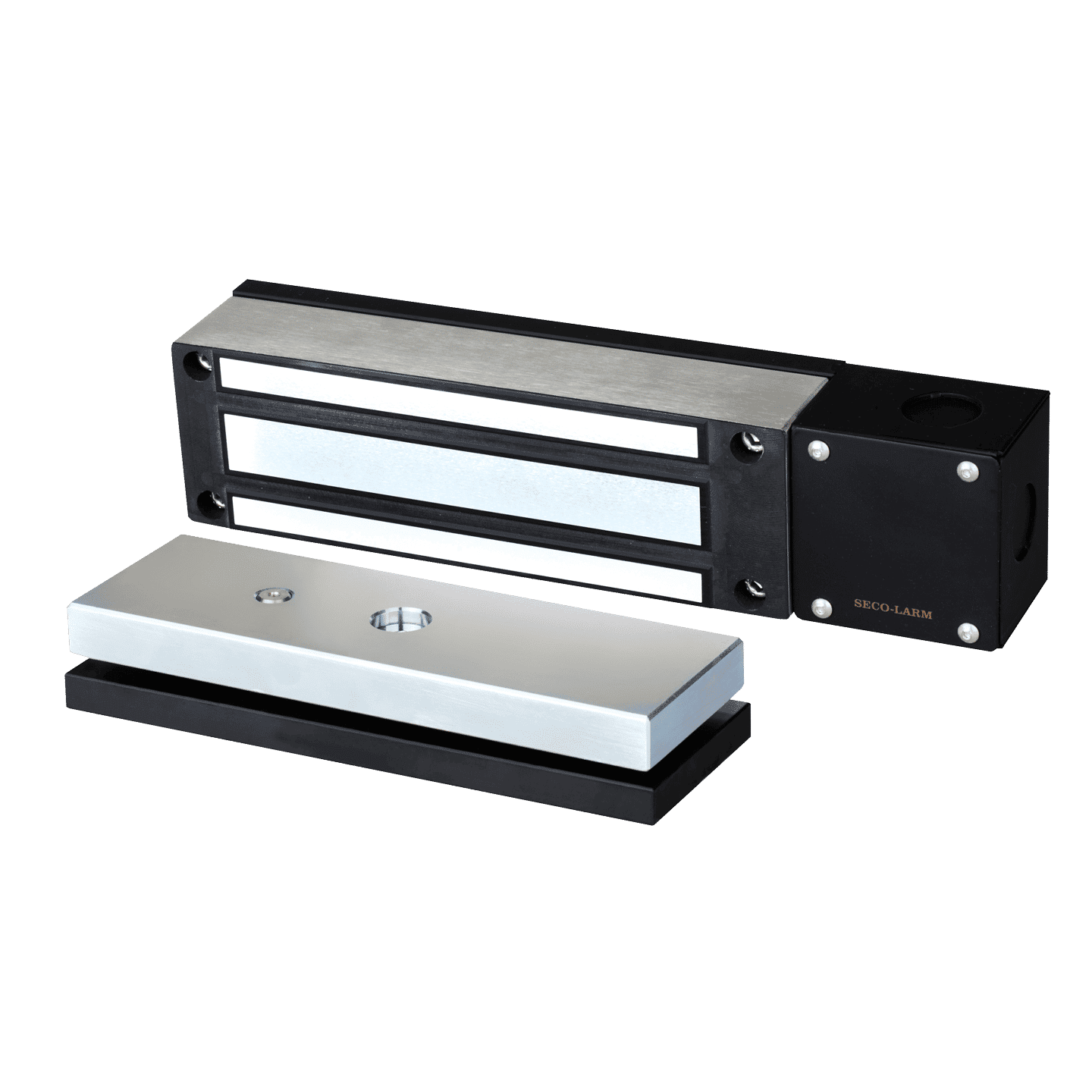

Seco-Larm 1,200-lb Electromagnetic Gate Lock, Face Mount, Weldable Electromagnetic Gate Lock with brackets for armature and magnet. The E-942FC-1K3SQ is primarily designed for swinging gates. 1,200-lb (545 kg) Holding force No residual magnetism MOV Surge protection Face mounting For sliding or swinging gates Weld or bolt brackets directly to the gate Brackets are zinc-plated for corrosion resistance Water- and vandal-resistant attractive stainless-steel black finish to match most gates Maintenance-free, factory-sealed design Fail-safe operation (releases if power is removed) Waterproof (IP67) and vandal resistant for indoor and outdoor applications Dual-threaded conduit fitting Attractive stainless steel housing Junction box with 4 knockouts Complete mounting hardware for typical installations Additional brackets available for easy mounting or atypical situations 12/24VDC Selectable Lifetime limited warranty* *Warranty applies in the USA and Canada only. Contact SECO-LARM for details. Specifications: Holding Force 1,200-lb (544kg) Operating Voltage 12VDC or 24VDC Current Draw 500mA@12VDC, 250mA@24VDC IP Rating IP67 Waterproof Operating Temperature 14º~131º F (-10º~55º C) Certification cUL, UL, CE, RoHS (magnetic lock only) Weight 15.9-lb (7.75kg) Maglock & Armature Weight (Approx.) 11-lb (5kg) Bracket Weight (Approx.) 4.6-lb (2.1kg) Downloads: Product Information Sheet (PI) Manual SKU: E-942FC-1K3SQ Categories: Access Control, Maglocks
How it works
Follow these simple steps to set up the RAZ Medical ID Bracelet:
- Go to MyTapMedID.com.
- Click the “First Time Activation” button.
- Fill in the wearer’s personal information.
- Enter the ID and PIN printed on your RAZ Medical ID Bracelet.
- Click “Activate” to create your account.
Once activated, you’ll be able to enter the wearer’s medical information. After this is completed, the bracelet is ready to be used!
Specifications
Dimensions: 5.12 x 2.09 x 1.18 inches
Weight: 1.13 ounces
Material: Silicone
Gender: Unisex
Size: Maximum wrist size of 8 inches in diameter
Color: Navy blue
FAQ
Click here to access our FAQ. If your question is not answered, please contact us.
