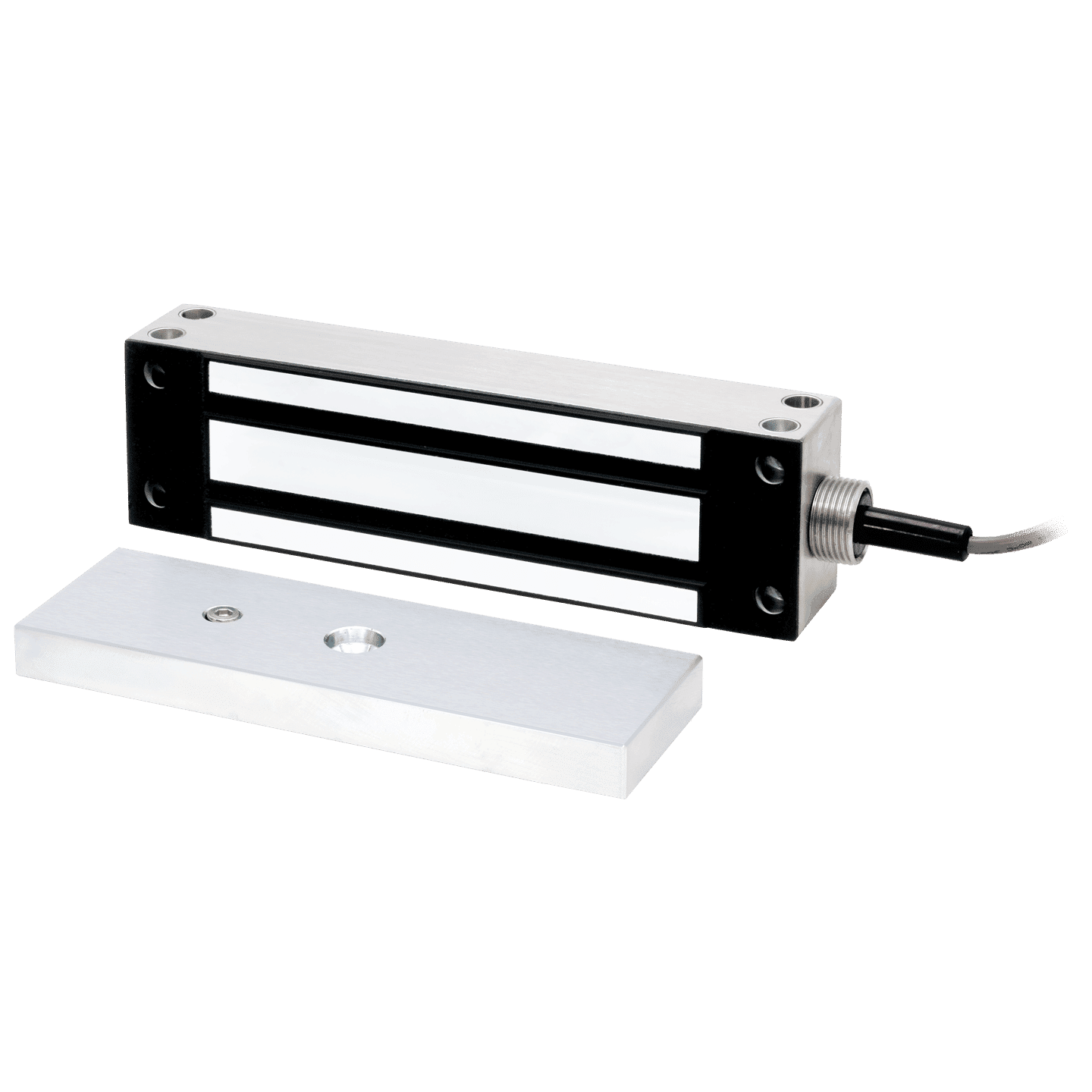

Seco-Larm 1,200-lb Electromagnetic Gate Lock, Face or Surface Mount, UL Listed
$59.27
$110.83
Seco-Larm 1,200-lb Electromagnetic Gate Lock, Face or Surface Mount, UL Listed 1,200-lb (545 kg) Holding force No residual magnetism MOV Surge protection Face or surface mounting For sliding or swinging gates Maintenance-free, factory-sealed design Waterproof (IP67) and vandal resistant for indoor and outdoor applications Dual-threaded conduit fitting Attractive stainless steel housing 6.5-ft (2m) Hookup cord Complete mounting hardware for typical installations Additional brackets available for easy mounting or atypical situations 12/24VDC Selectable Multiple UL listings UL10C Positive Pressure Fire Test – USA UL10B Fire Test of Door Assemblies – USA ULC-S104 Fire Test of Door Assemblies – Canada Lifetime limited warranty* *Warranty applies in the USA and Canada only. Contact SECO-LARM for details. Specifications: Holding Force 1,200-lb (544kg) Operating Voltage 12VDC or 24VDC ±10% Current Draw 500mA@12VDC, 250mA@24VDC IP Rating IP67 Waterproof Operating Temperature 14º~131º F (-10º~55º C) Electromagnet Dimensions 8-11/16″ x 2-1/2″ x 1-9/16″ (220 x 63 x 40 mm) Armature Dimensions 7-1/4″x2-3/8″x5/8″ (185x61x16 mm) Weight 11-lb (5kg) Downloads: Product Information Sheet (PI) Manual Mounting Template SKU: E-946FC-1K2Q Categories: Access Control, Maglocks
