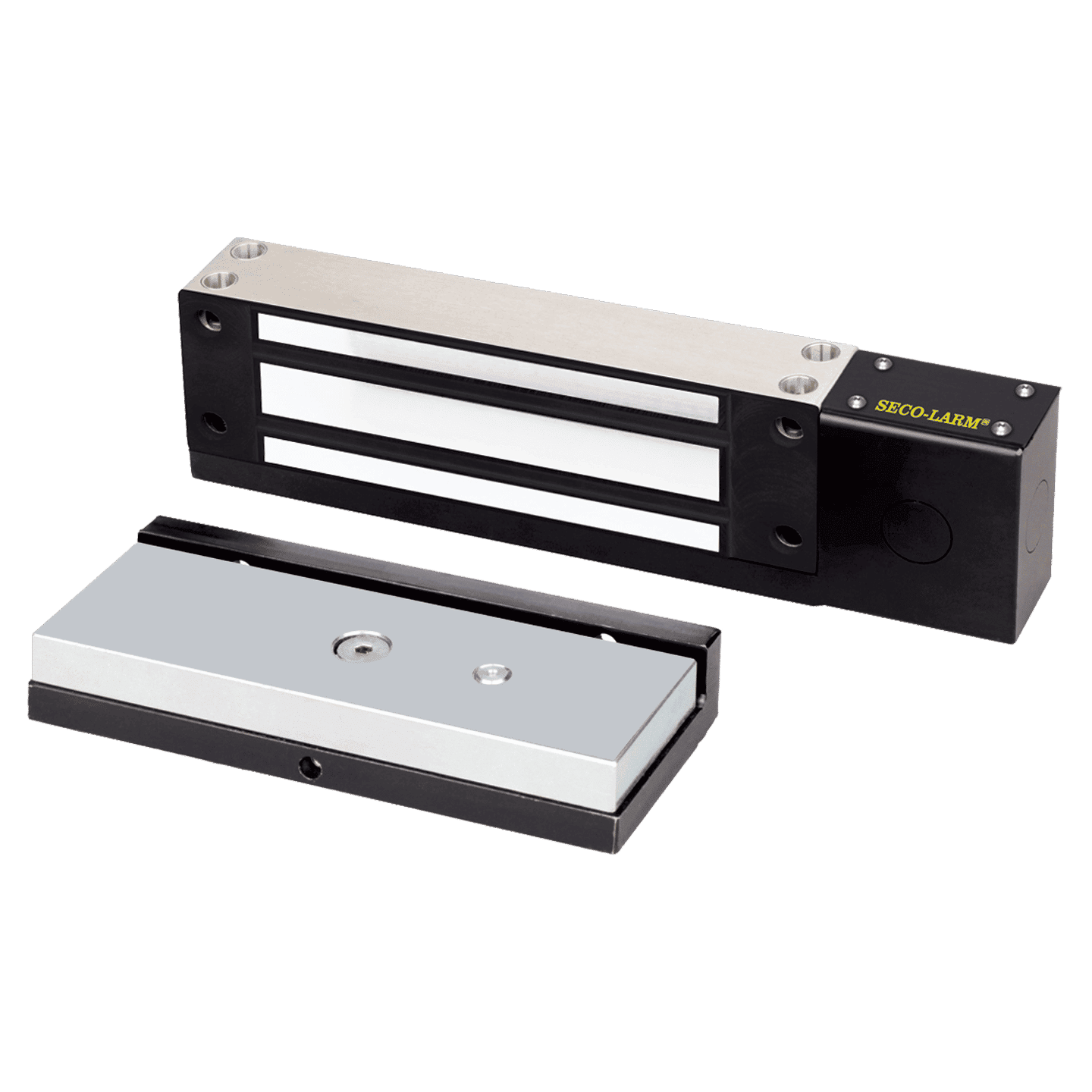

Seco-Larm 1,200-lb Electromagnetic Gate Lock, Side (Surface) Mount, Weldable The SECO-LARM Electromagnetic Gate Lock with Weldable Bracket combines a strong and durable gate lock with a weldable bracket for ease of installation and greater security. With variants of both 1,200-lb (544kg) and 600-lb (272kg) holding force, it is suitable for almost any gate installation and can be installed horizontally and vertically. 12/24 VDC For use with nearly all types of outdoor sliding and swinging electric gates Low current draw of 500mA@12VDC, 250mA@24VDC Can be welded or bolted directly to gate and mounted horizontally or vertically Includes a magnetic lock with brackets for armature and magnet, mounting hardware included Zinc-plated brackets for corrosion resistance Maintenance-free, factory-sealed design, IP67 Waterproof Water- and vandal-resistant stainless-steel with black finish to match most gates Fail-safe operation (releases if power is removed) Four knockouts on junction box Lifetime limited warranty* *Warranty applies in the USA and Canada only. Contact SECO-LARM for details. Specifications: Operating Voltage 12/24VDC Holding Force 1,200-lb (544kg) Current Draw 500mA@12VDC, 250mA@24VDC IP Rating IP67 Waterproof Operating Temperature 14º~131º F (-10º~55º C) Certification cUL, UL, CE, RoHS (magnetic lock only) Weight Maglock & Armature Weight (Approx.): 11-lb (5kg)Brackets: 5-lb (2.3kg) Total: 16.1-lb (7.3kg) Downloads: Product Information Sheet (PI) Manual SKU: E-946FC-1K2SQ Categories: Access Control, Maglocks
How it works
Follow these simple steps to set up the RAZ Medical ID Bracelet:
- Go to MyTapMedID.com.
- Click the “First Time Activation” button.
- Fill in the wearer’s personal information.
- Enter the ID and PIN printed on your RAZ Medical ID Bracelet.
- Click “Activate” to create your account.
Once activated, you’ll be able to enter the wearer’s medical information. After this is completed, the bracelet is ready to be used!
Specifications
Dimensions: 5.12 x 2.09 x 1.18 inches
Weight: 1.13 ounces
Material: Silicone
Gender: Unisex
Size: Maximum wrist size of 8 inches in diameter
Color: Navy blue
