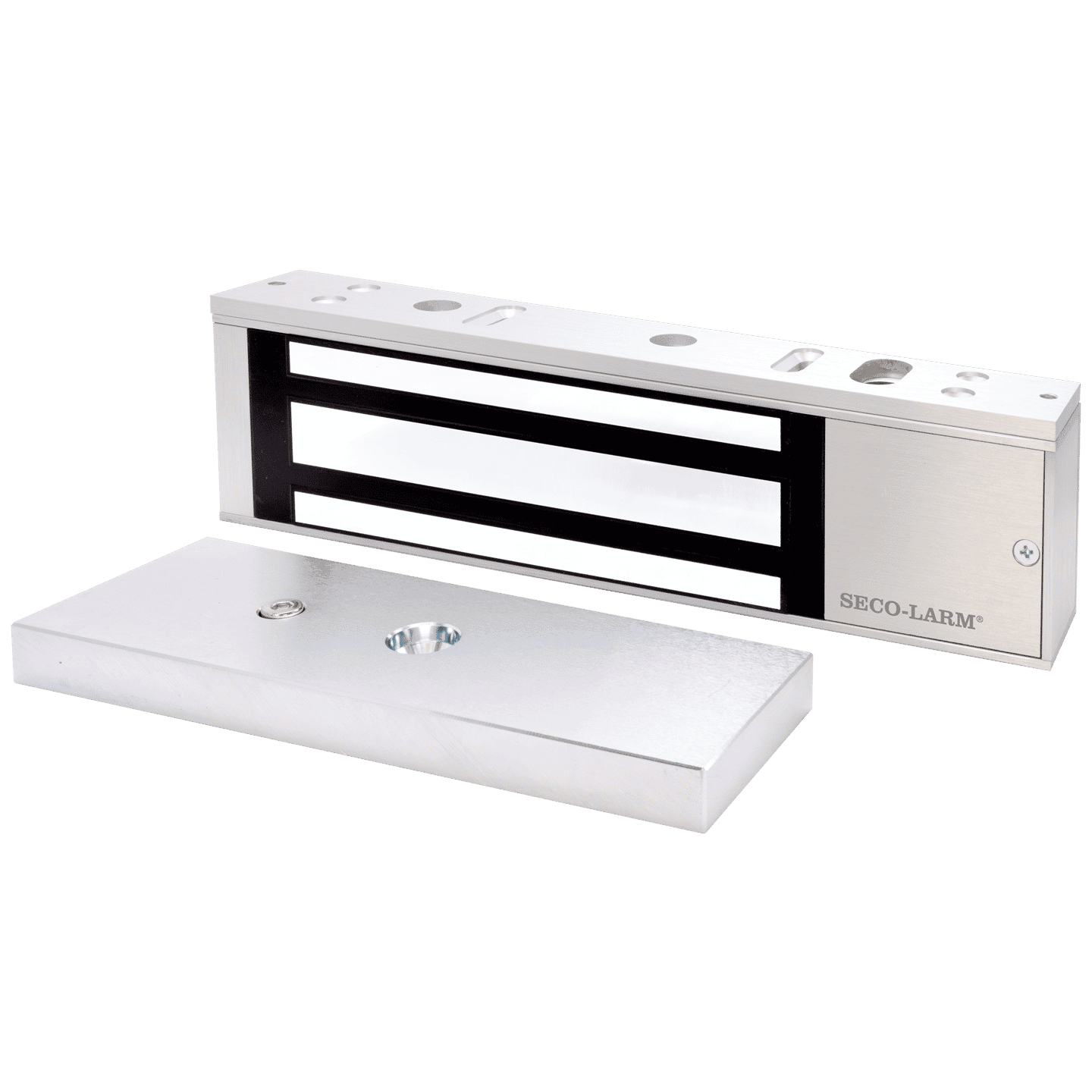

Seco-Larm 1,200-lb Electromagnetic Lock, Bond Sensor, Status LED, UL Listed
$57.88
$71.77
Seco-Larm 1,200-lb Electromagnetic Lock, Bond Sensor, Status LED, UL Listed The E-941Sx series of electromagnetic locks is the ideal way to secure a door against unauthorized entry. When power is applied to the electromagnetic lock, it creates an extremely strong magnetic field. The electromagnet is strongly attracted to the steel armature plate which is mounted on the secured door. Once the electromagnet is deactivated, the secured door will function normally without any residual magnetism. 1,200-lb (545kg) Holding force No residual magnetism MOV Surge protection Built-in status LED shows locked/unlocked status Built-in bond sensor with 3A@12VDC dry relay output for monitoring door status Anodized aluminum housing (US 28) Adjustable mounting bracket Complete mounting hardware for typical installations Additional brackets available for easy mounting or atypical situations Detachable faceplate for easy access to wiring 12/24VDC Selectable Multiple UL listings UL294 Access Control System Units – USA UL10C Positive Pressure Fire Test – USA UL10B Fire Test of Door Assemblies – USA ULC-S104 Fire Test of Door Assemblies – Canada Lifetime limited warranty* *Warranty applies in the USA and Canada only. Contact SECO-LARM for details. Specifications: Holding force 1,200-lb (545kg) Operating voltage 12/24 VDC (selectable) Current draw 500mA@12VDC, 270mA@24VDC Operating temperature 32º~120º F (0º~49º C) Magnet dimensions 10-1/2″x2-5/8″x1-9/16″ (267x67x67 mm) Armature dimensions 7-1/4″x2-3/8″x5/8″ (185x61x16 mm) Destructive attack Level I Line security Level I Standby power Level I Endurance Level IV Weight 11-lb (5kg) Bond Sensor Yes Status LED Yes Downloads: Product Information Sheet (PI) Manual Mounting Diagram SKU: E-941SA-1K2PQ Categories: Access Control, Maglocks
