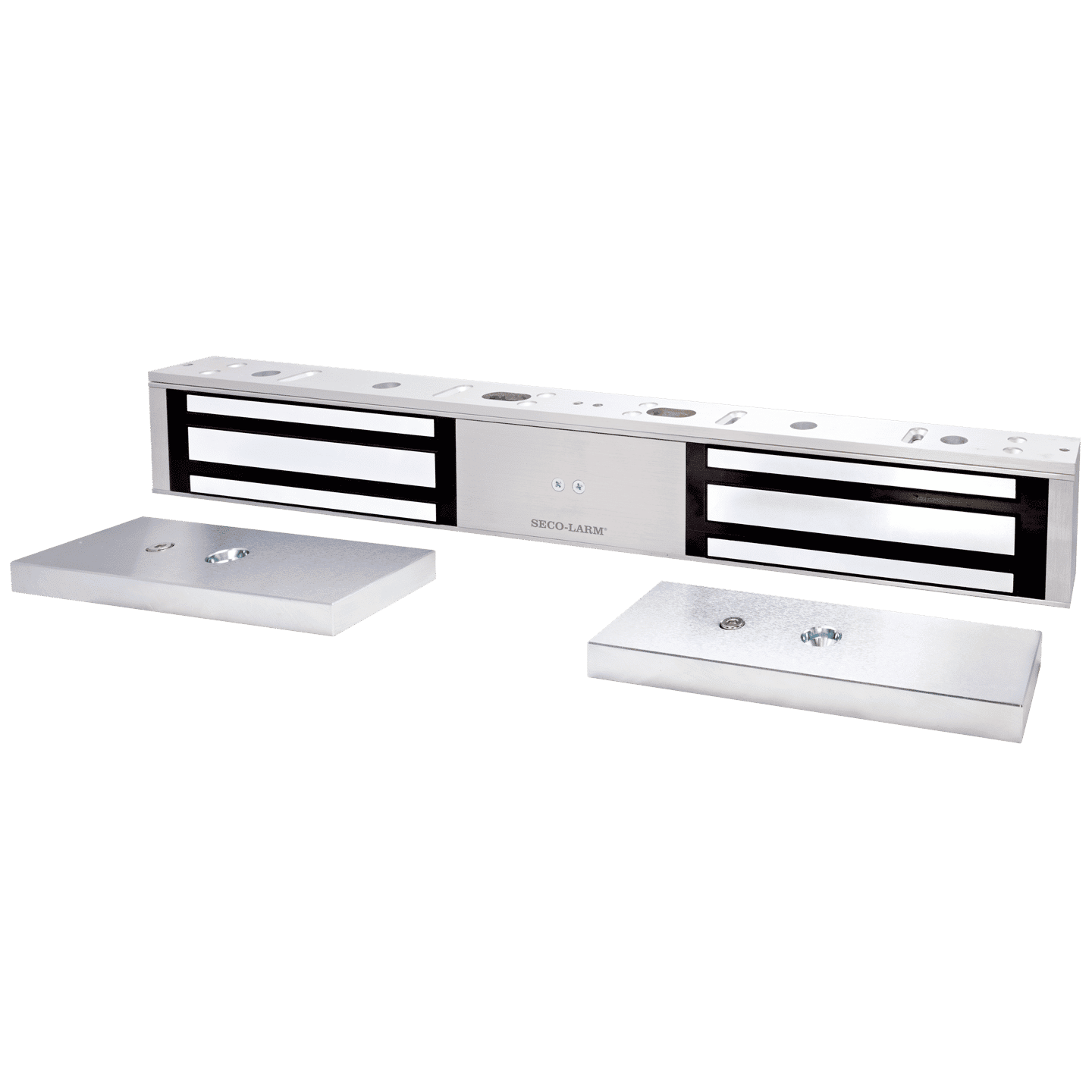

Seco-Larm 1,200-lb Electromagnetic Lock, Double-Door, UL Listed

Seco-Larm 1,200-lb Electromagnetic Lock, Double-Door, UL Listed The E-941Dx series of electromagnetic locks is the ideal way to secure a door against unauthorized entry. When power is applied to the electromagnetic lock, it creates an extremely strong magnetic field. The electromagnet is strongly attracted to the steel armature plate which is mounted on the secured door. Once the electromagnet is deactivated, the secured door will function normally without any residual magnetism. 1,200-lb (545kg) Holding force per door No residual magnetism MOV Surge protection Anodized aluminum housing (US 28) Adjustable mounting bracket Complete mounting hardware for typical installations Additional brackets available for easy mounting or atypical situations Detachable faceplate for easy access to wiring 12/24VDC Selectable Multiple UL listings UL294 Access Control System Units – USA UL10C Positive Pressure Fire Test – USA UL10B Fire Test of Door Assemblies – USA ULC-S104 Fire Test of Door Assemblies – Canada Lifetime limited warranty* *Warranty applies in the USA and Canada only. Contact SECO­-LARM for details. Specifications: Holding force 1200-lb (545kg) per door Operating voltage 12 /24 VDC (selectable) Current draw 500mA@12VDC per door (1A total) 270mA@24VDC per door (540mA total) Operating temperature 32º~120º F (0º~49º C) Electromagnet dimensions 21″ x 2-5/8″ x 1-5/8″ (536x67x42 mm) Armature dimensions 7-1/4″x2-3/8″x5/8″(185x61x16 mm) Weight 21-lb (10kg) Destructive attack Level I Line security Level I Standby power Level I Endurance Level IV Downloads: Product Information Sheet (PI) Manual Mounting Template SKU: E-941DA-1K2Q Categories: Access Control, Maglocks
