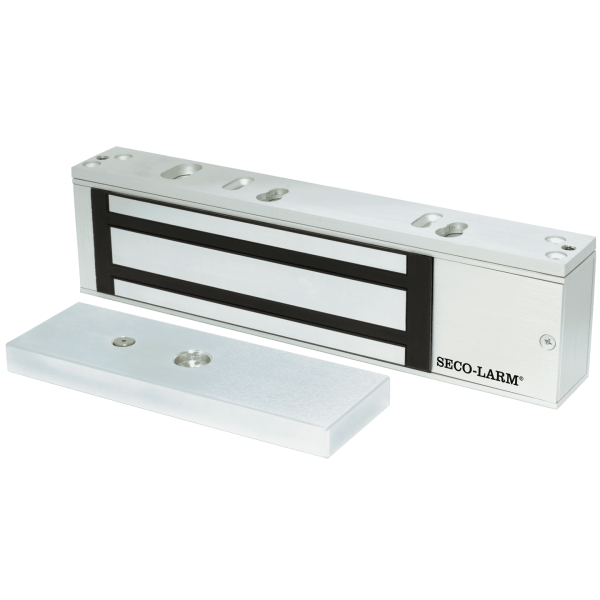

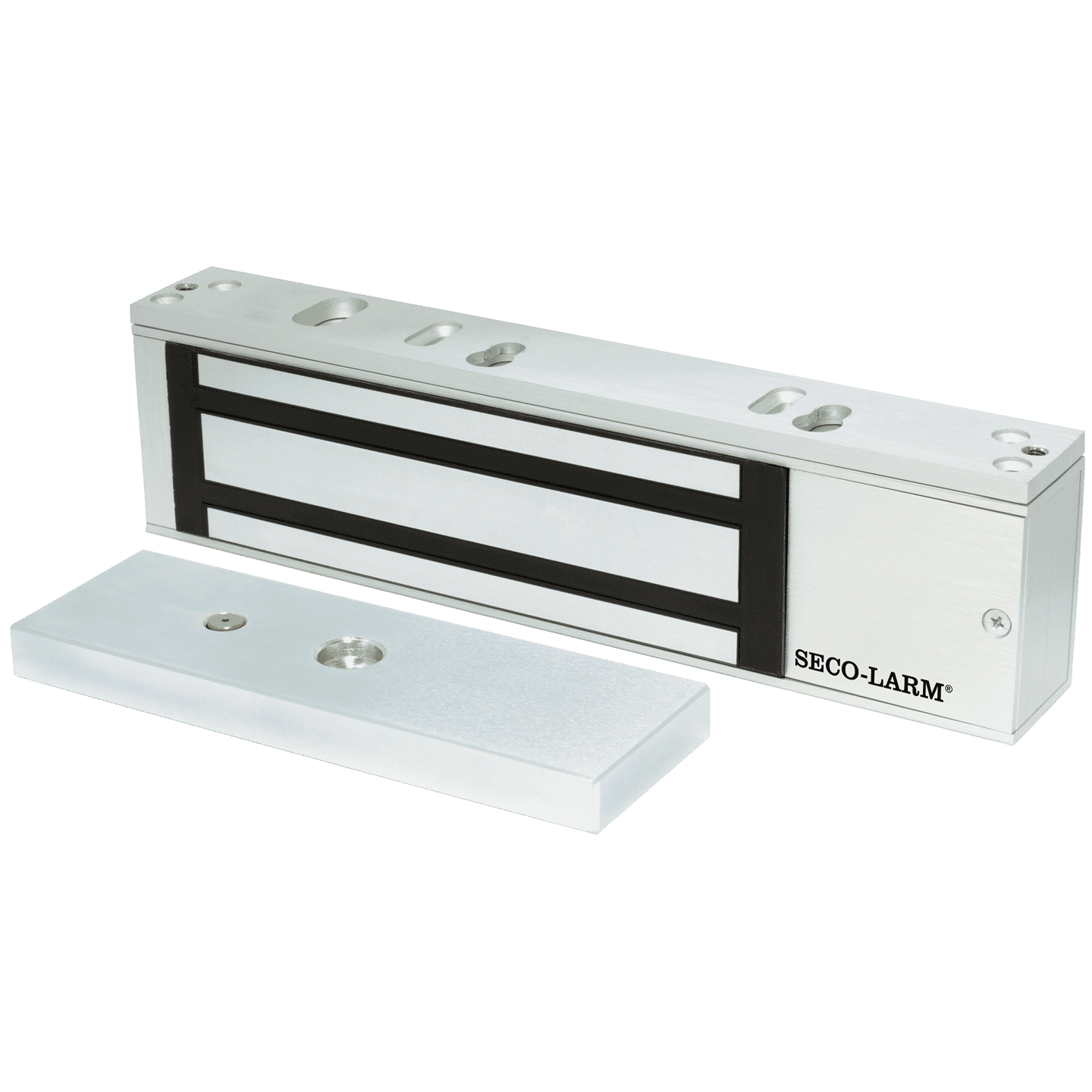

Seco-Larm 1,500-lb Electromagnetic Lock The E-941SA-1K5Q 1,500-lb Single-Door Electromagnetic Lock is the ideal way to secure a door against unauthorized entry. When power is applied to the electromagnetic lock, it creates an extremely strong magnetic field. The electromagnet is strongly attracted to the steel armature plate which is mounted on the secured door. Once the electromagnet is deactivated, the secured door will function normally without any residual magnetism. 1,500-lb (680kg) Holding force No residual magnetism MOV Surge protection Suitable for horizontal or vertical installation Anodized aluminum housing (US 28) Keyhole slot mounting plate makes installation easier Complete mounting hardware for typical installations Additional brackets are available for easy mounting or atypical situations Detachable faceplate for easy access to wiring 12/24VDC Selectable Limited Lifetime Warranty *Warranty applies in the USA and Canada only. Contact SECO-LARM for details. Specifications: Holding Force 1,500-lb (680kg) Operating Voltage 12/24 VDC Current Draw 600mA@12VDC, 300mA@24VDC Coil resistance 46Ω ±10% per coil Housing material Anodized aluminum (US 28) Operating Temperature 14°~131° F (-10°~55° C) Mounting plate dimensions 11-1/4″x1-9/16″x1/4″ (286x40x6 mm) Electromagnet Dimensions 11-1/4″x1-11/16″x2-5/8″ (286x43x67 mm) Armature Dimensions 7-1/4″x5/8″x2-3/8″ (185x16x60 mm) Weight 11-lb, 1.2-oz (5kg) Downloads: Product Information Sheet (PI) Manual SKU: E-941SA-1K5Q Categories: Access Control, Maglocks
