69mm WorkBee Router Mount

$ 44.55

Category:

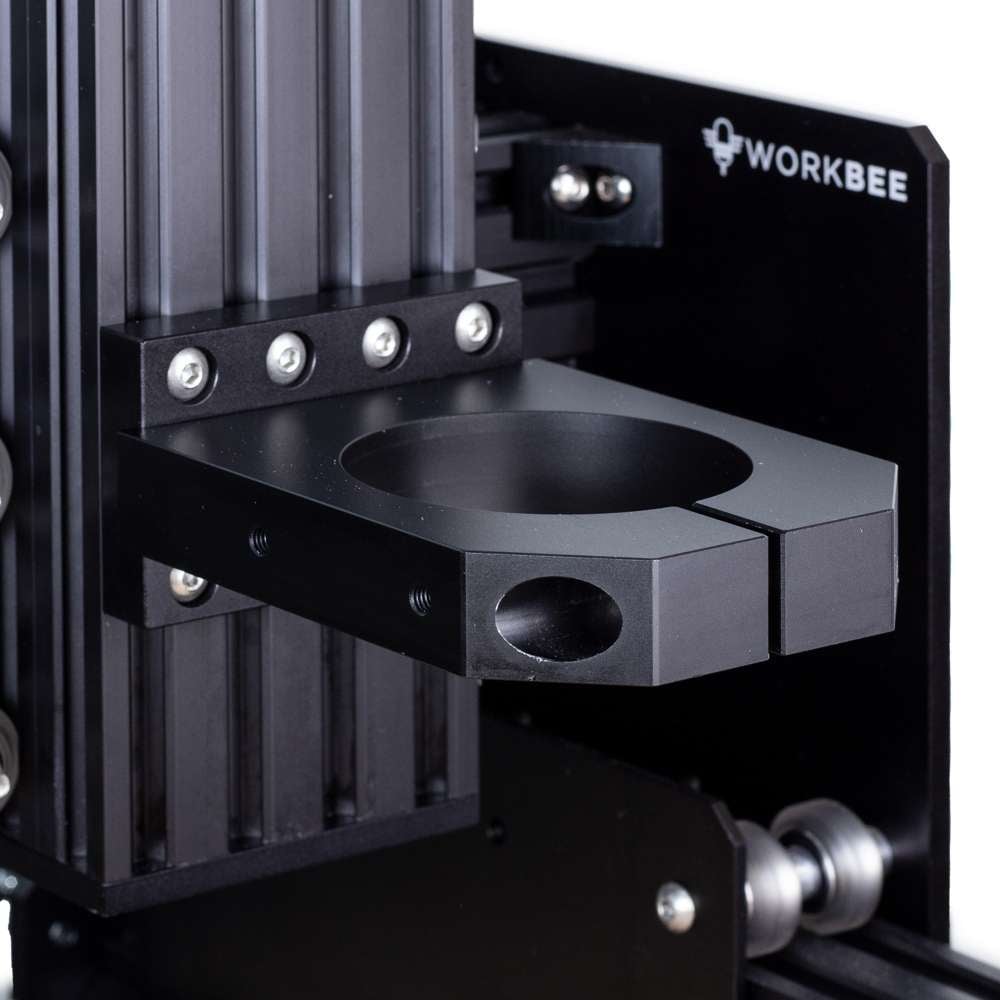

69mm WorkBee Router Mount is designed for use with the WorkBee CNC Machine, or similar CNC Machines with an 80mm wide Z-Axis. Manufactured from black anodised aluminium, the two-piece construction consists of a Z-Bracket and a Router Clamp. The Z-Bracket features a locating inset to ensure the router clamp is perfectly perpendicular, while the interchangeable single piece router clamp uses a precise cylindrical bore for secure, axial clamping of the router or spindle. This guarantees stability and accuracy during cutting. It also includes a height reference tool, which positions the Router Mount at the correct height on the Z-Axis to maximise the workable depth of the machine. The ‘L’ shape design references the bottom of the Z-Axis and ensures perpendicular alignment. The height reference tool has two sides: One side for positioning 65 and 69mm Router Heads such as WorkBee Router Head, DeWalt, Katsu, and Makita. One side for positioning 43mm Router Heads such as Mafell and Kress. Compatbililty WorkBee Z1 WorkBee V2.3 WorkBee V2.3.1 WorkBee V2.2 WorkBee V2.2.1 WorkBee V2.1 WorkBee V2.0 WorkBee V1.0 It is fully compatible with our Dust Shoe. The WorkBee Router Mount shares the same compatibility as the OpenBuilds Router Mount, allowing it to be used with a range of accessories.
